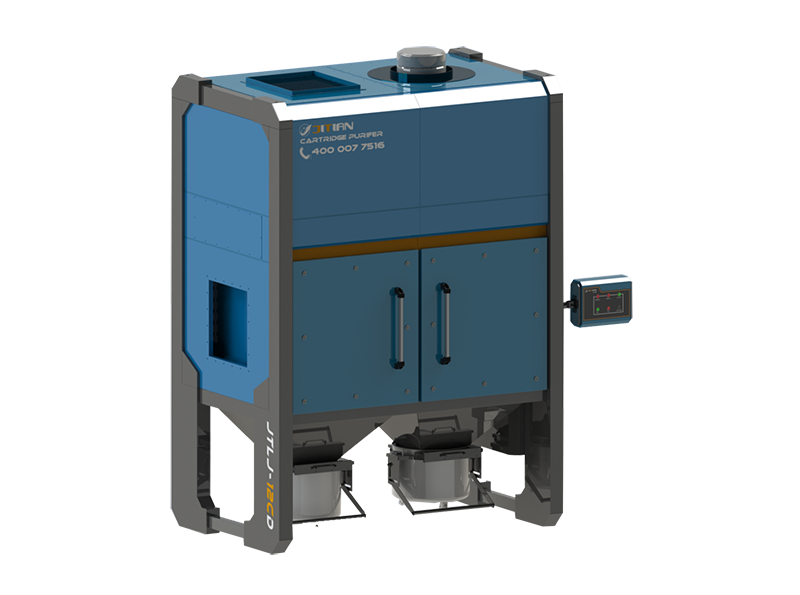

All-in-one high efficiency filter cartridge purifier

200+People like

Simple and beautiful

Low resistance

Structure and function introduction：

JTLJ integrated high efficiency filter cylinder purifier is a dust removal equipment that integrates fan, motor, electric control system and filter unit; Filter unit equipped with high efficiency polyester coated filter cylinder, high filtration efficiency and filtration accuracy; The sheet metal parts are made of high quality cold rolled sheet, and the surface is sprayed with plastic. The filter cylinder is installed vertically and adopts the fast pressing device, which is quick and convenient to disassemble and assemble. Stainless steel ash bucket equipped with fast pressing device, ash unloading easy and fast. Equipment adopts modular design, high degree of standardization, short production cycle. The appearance of atmosphere, beautiful, designed for metal processing industry, chemical industry, powder industry, wood furniture processing industry and other floating dust and dust, cost-effective design. Equipped with brand fan motor, high efficiency PTFE coated polyester fiber filter cylinder, to ensure the high level of filtration accuracy and efficiency.

Customer service hotline：

400-007-7516

Immediate consultation

Commodity details

Technical parameter

After-sales service

All-in-one high efficiency filter cylinder purifier

product details

◆ Brand fan motor, strong power

Power system equipped with three-phase 380V voltage brand asynchronous motor, high strength customized centrifugal impeller, fan negative pressure and flow perfect combination, equipment stable operation, low failure rate, low noise, 24 hours of continuous work.

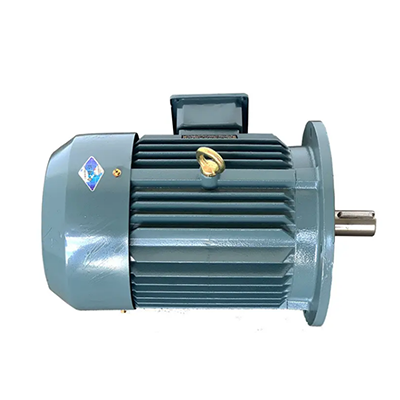

Brand motor

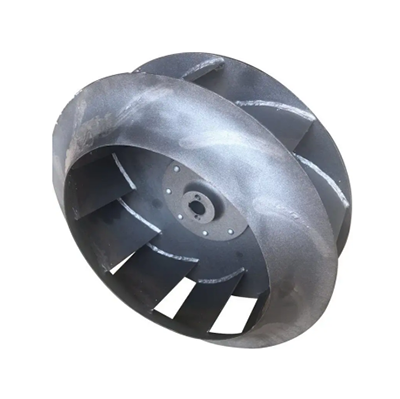

Fan impeller

◆ High efficiency PTFE coated polyester fiber filter drum

Filter system selection of high efficiency PTFE coated polyester fiber filter cylinder, the selection of imported polyester fiber substrate, standard configuration polyester coated waterproof material, the equivalent diameter in 0.3μ The filtration accuracy of dust above m is more than 99.9%.

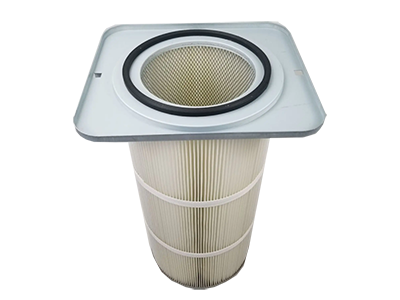

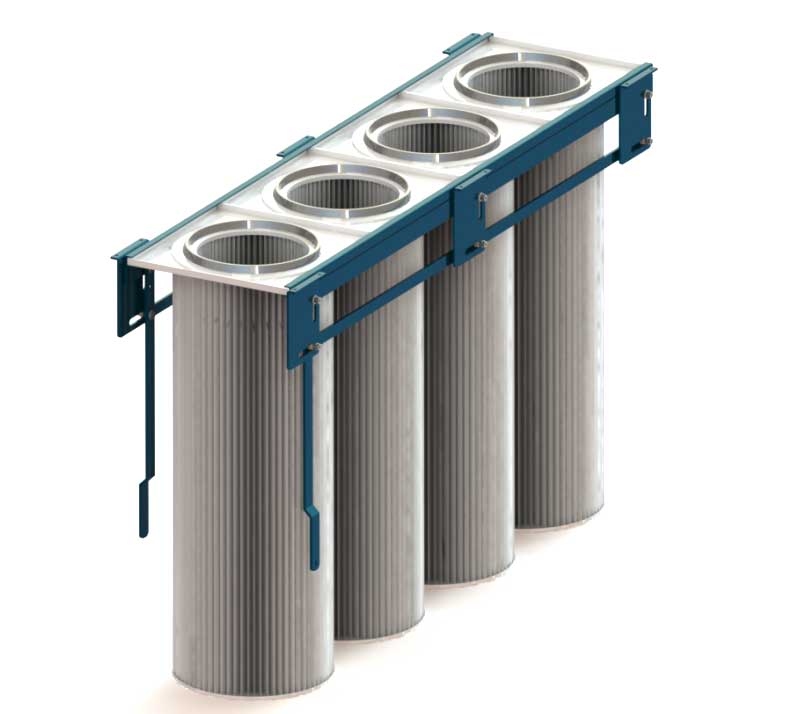

Cartridge filter

◆ Intelligent automatic pulse cleaning, high efficiency and no pollution

The intelligent automatic pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, and the electromagnetic valve nozzle is aligned with the filter cylinder filter outlet; The solenoid valve control line is connected with the PLC controller, the action of the solenoid valve is intelligent controlled by the PLC controller, when the controller gives the action command, the pulse solenoid valve begins to act, each spray cleaning in 0.1 ~ 0.3S or so to complete, at this moment the high-pressure air from the filter cylinder exhaust port into the filter cylinder at high speed, causing a shock vibration, The dust attached to the outer surface of the filter cylinder is shaken off in the dust collection bucket. The cleaning frequency can be set intelligently by PLC controller.

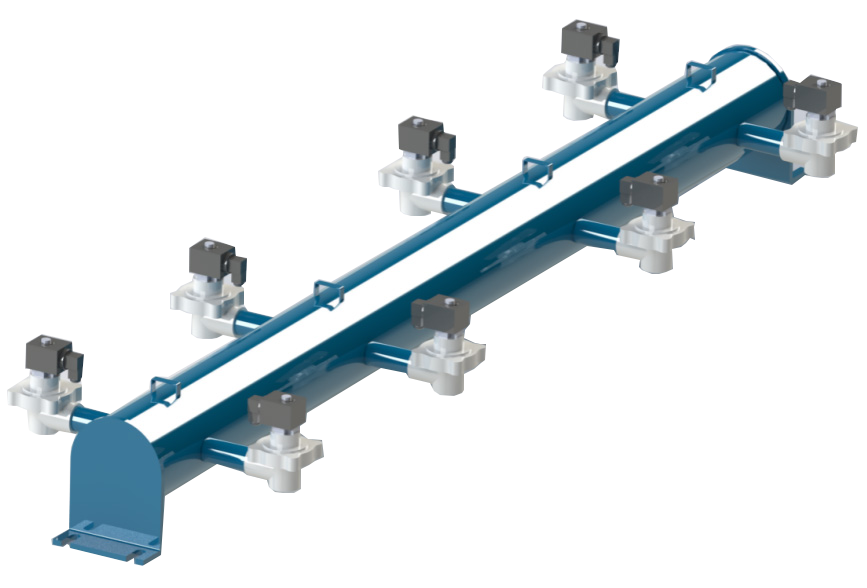

Compressed air bag, solenoid valve

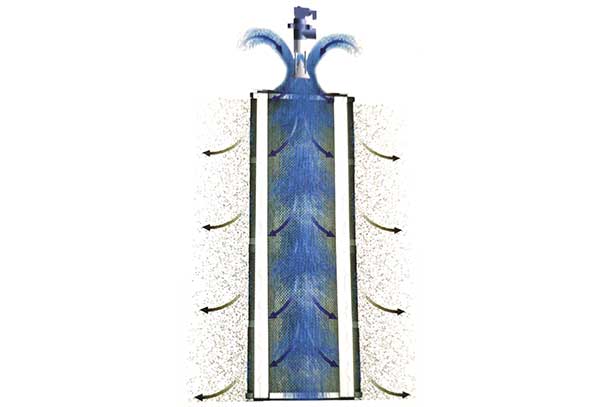

Dust removal schematic diagram

◆ Modular design of sheet metal parts

Sheet metal parts processing precision is high, the surface is more flat, the production cycle is short, fast supply; Sheet metal surface using corrosion resistant powder spraying, durable, beautiful appearance, uniform style.

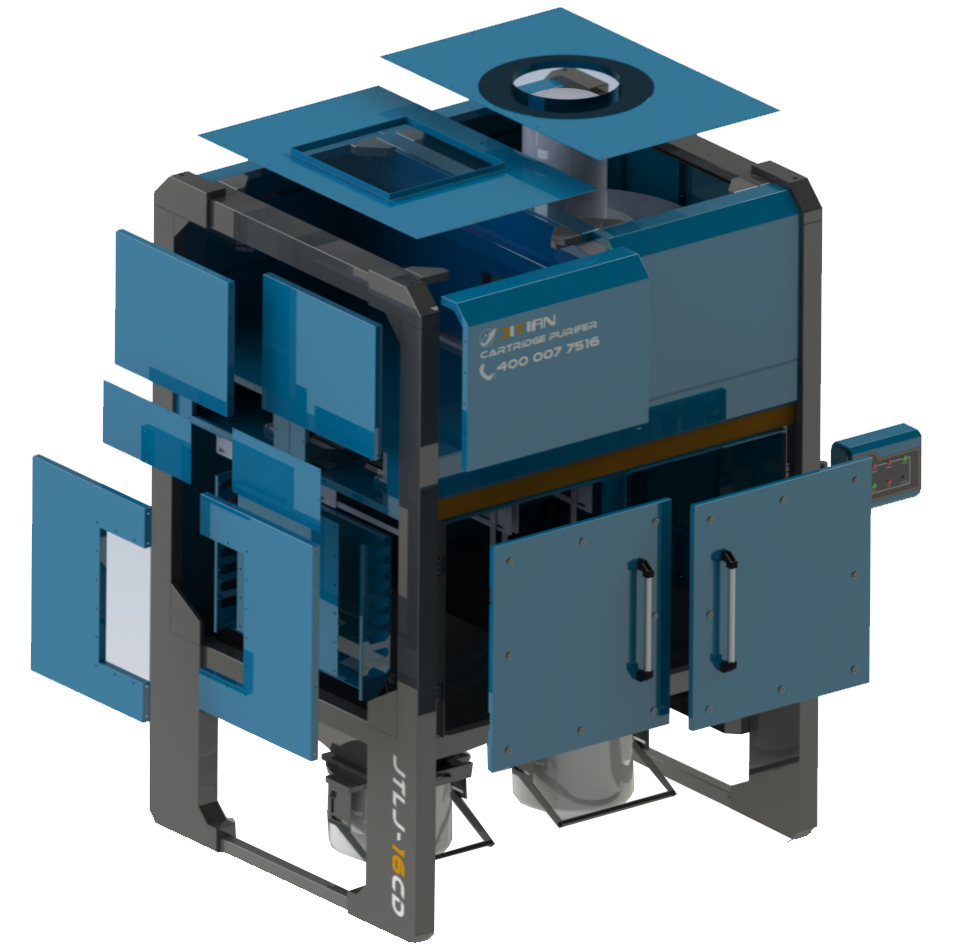

Modular design of sheet metal parts

◆ Electronic control system, quality assurance

Electronic control system, the main electronic components using brand products. Motor adopts electric box control, built-in power switch, thermal overload protection, lack of phase, reverse equal phase sequence protection, control panel simple and generous, adjustable Angle, can easily achieve remote control, linkage control and other functions according to needs.

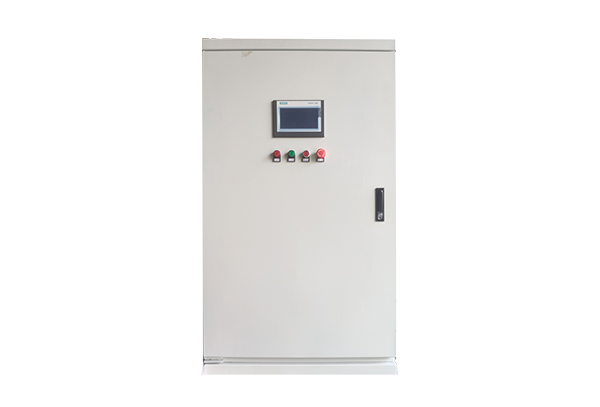

Electric control cabinet

◆ Filter cylinder vertical installation, installation, cleaning fast

The filter cylinder is installed vertically, so the cleaning effect is better. The press of the filter cylinder adopts the fast pressing mechanism, the installation and replacement of the filter cylinder does not need to enter the equipment inside, and the replacement is fast, labor-saving, easy and convenient maintenance.

Filter cylinder fast pressing device

◆Large volume ash storage bucket, equipped with universal wheel at the bottom, easy to transfer

The ash storage bucket is made of round stainless steel drum, the bottom plate is equipped with universal foot pulley, the single storage amount of ash, ash bucket movement is easy and labor saving. Ash bucket lifting and pressing using special pressing mechanism, loading and unloading fast, labor saving.

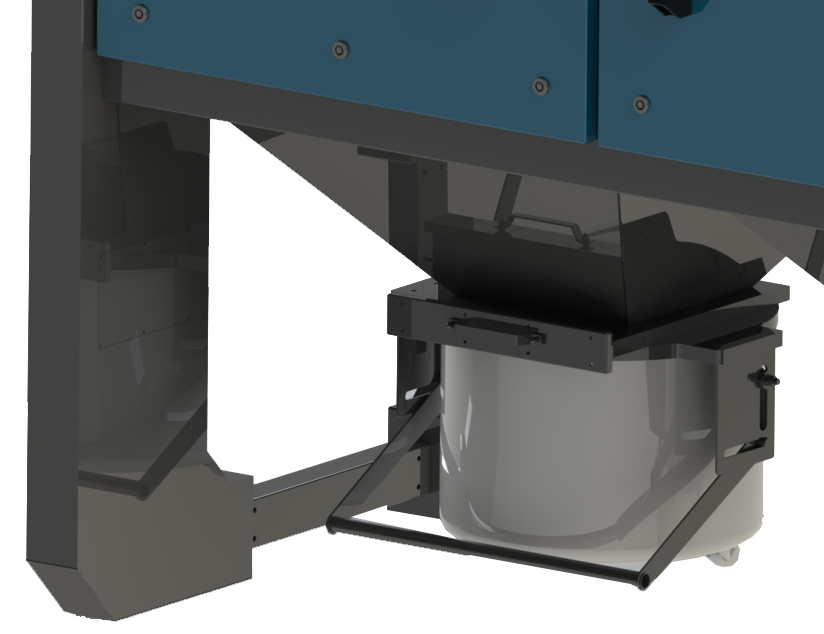

Ash bucket handling mechanism

Product parameter

Equipment model	JTLJ-B4DG/ JTLJ-B7DD	JTLJ-B6DG/ JTLJ-B9DD	JTLJ-B9DG/ JTLJ-B12DD	JTLJ-B12DG/ JTLJ-B18DD	JTLJ-B16DG/ JTLJ-B24DD
Treated air volume（m³/h）	4000/7000	6000/9000	9000/12000	12000/18000	16000/24000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	116010502960	116014122960	116018003030	211214123100	211218003160

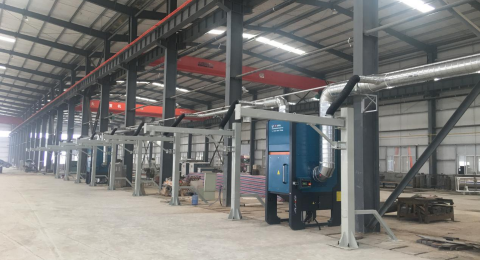

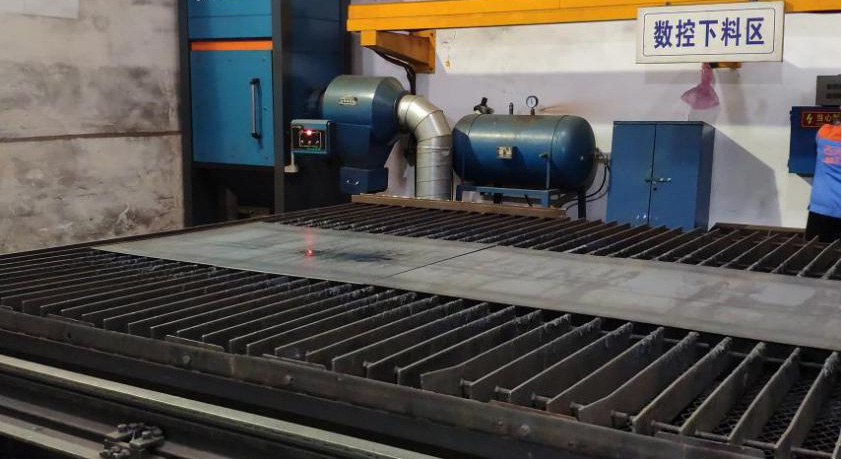

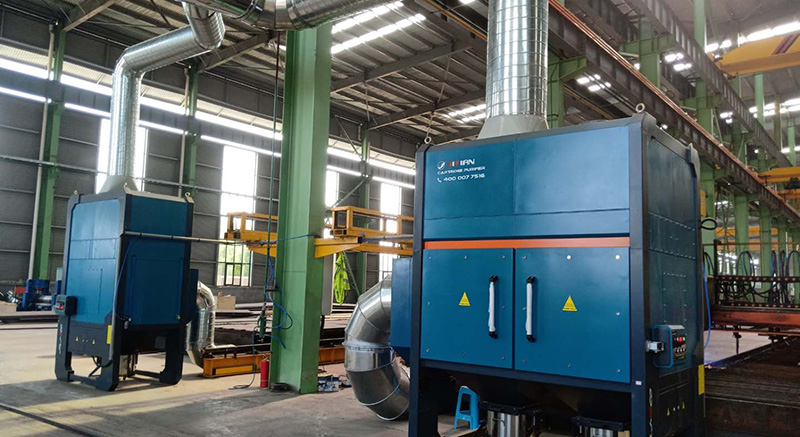

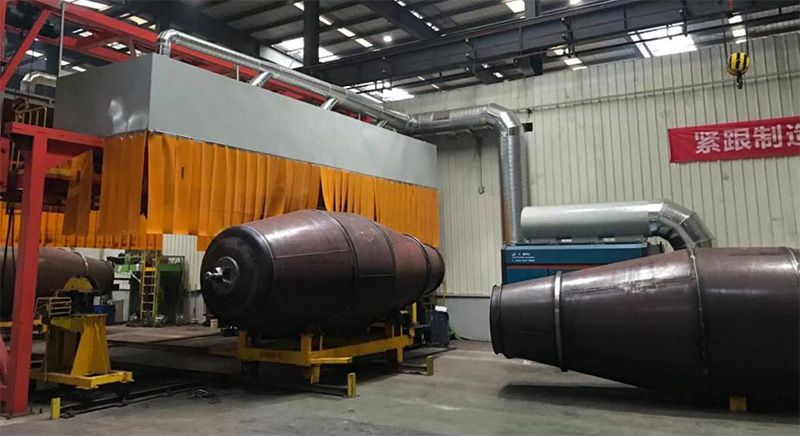

Engineering case

Equipment model	JTLJ-B4DG/ JTLJ-B7DD	JTLJ-B6DG/ JTLJ-B9DD	JTLJ-B9DG/ JTLJ-B12DD	JTLJ-B12DG/ JTLJ-B18DD	JTLJ-B16DG/ JTLJ-B24DD
Treated air volume（m³/h）	4000/7000	6000/9000	9000/12000	12000/18000	16000/24000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	116010502960	116014122960	116018003030	211214123100	211218003160
