Structure and function introduction：

XMC series pulse bag dust collector is a kind of improved design of our company's similar products at home and abroad. The dust collector uses the bag as the filter unit and uses the electromagnetic pulse valve to open and close the compressed air to blow the bag. Pulse jet cleaning method has the advantages of good cleaning effect, high purification efficiency, long service life of filter bag, small maintenance workload, safe and reliable operation. Widely used in metallurgy, building materials, machinery, chemical industry, furniture, light industry, mining and other industrial enterprises non-fiber industrial dust removal purification and material recovery.

Customer service hotline：

400-007-7516

Immediate consultation

Commodity details

Technical parameter

After-sales service

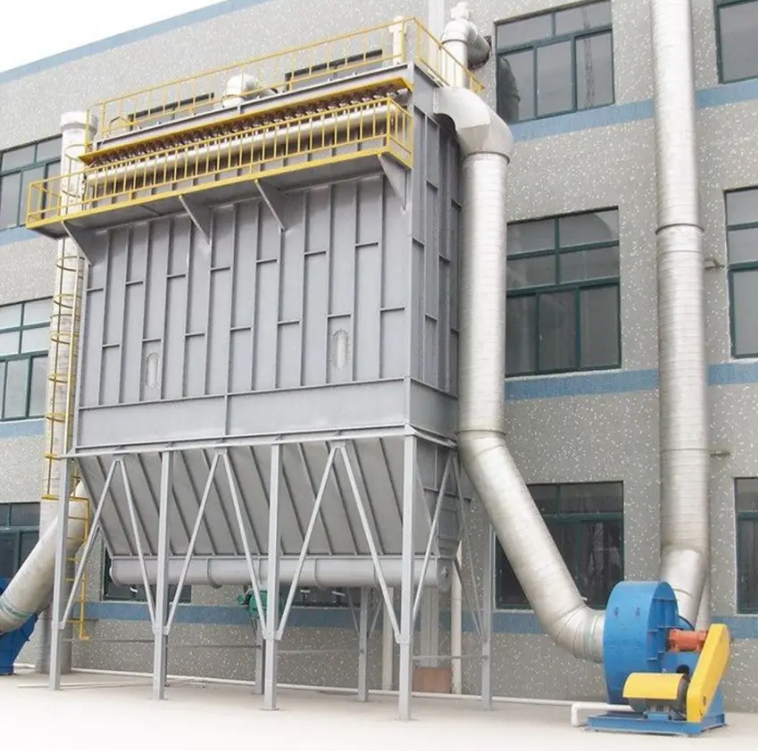

Cloth bag dust collector

product details

◆ The structure is tight and occupies a small area

XMC bag dust collector adopts diameter φ 130, length of 2 ~ 6m cloth bag filter bag, filter bag according to the font layout, structure played tightly.

◆ Pulse jet cleaning ash, ash cleaning effect is good

XMC bag dust collector adopts compressed air pulse cleaning, and the air source pressure is between 0.5-0.7MPa. The pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, the solenoid valve ejector is aligned with the bag filter outlet, and the solenoid valve control line is connected with the PLC controller. The action of solenoid valve is intelligently controlled by PLC controller, and the cleaning effect is good.

◆ Clean the top of the room for bag change, easy maintenance

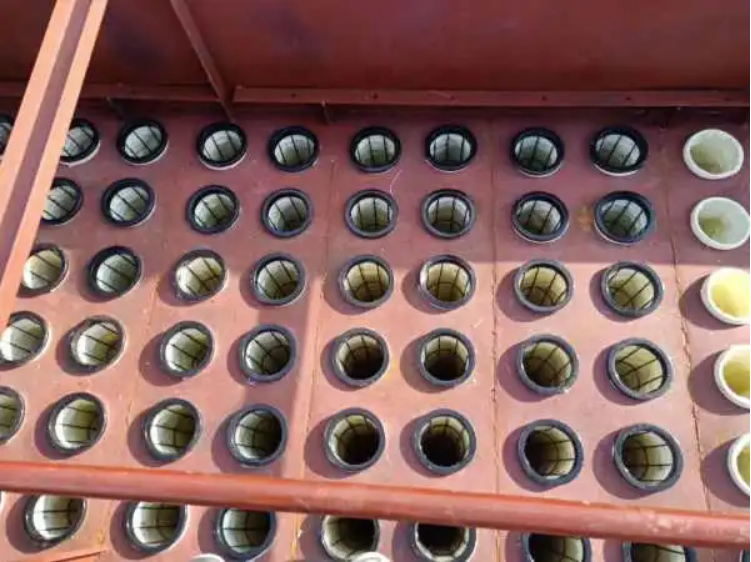

The cleaning room of XMC type bag dust collector is on the top of the equipment, and the cloth bag is installed on the bottom plate of the cleaning room. There is an access door at the top of the cleaning room, and it is convenient to open the access door to replace the filter cloth bag.

Product parameter

Equipment model	XMC120	XMC144	XMC168	XMC192	XMC216	XMC240
Treated air volume（m³/h）	7200-14400	8500-17000	10000-20000	11500-23000	12500-25000	14400-28800
Filter bag Quantity (only)	120	144	168	192	216	240
Filter area（㎡）	120	144	168	192	216	240
Filtered wind speed（m/min）	1.0～2.0
Resistance（Pa）	1000～1700Pa
Cleaning method	Automatic pulse cleaning
Clear ash air source（MPa）	0.5～0.7

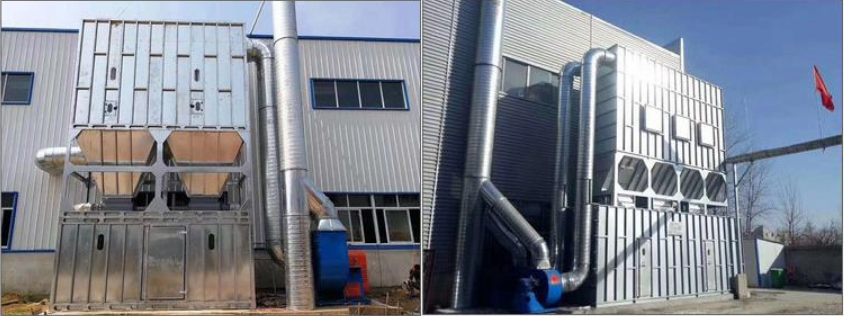

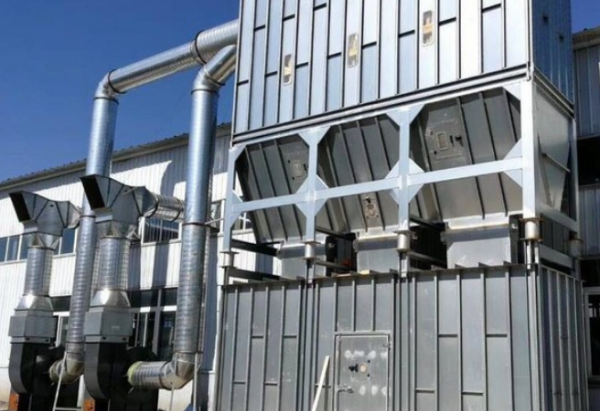

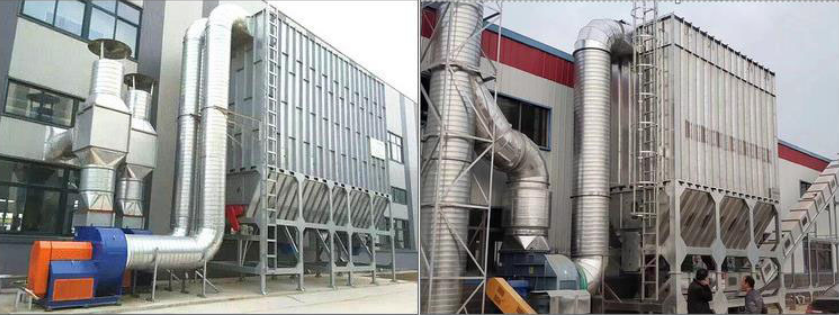

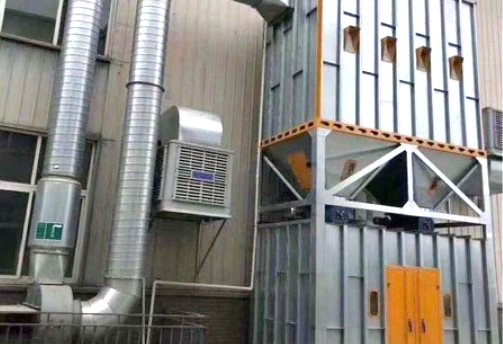

Engineering case

Equipment model	XMC120	XMC144	XMC168	XMC192	XMC216	XMC240
Treated air volume（m³/h）	7200-14400	8500-17000	10000-20000	11500-23000	12500-25000	14400-28800
Filter bag Quantity (only)	120	144	168	192	216	240
Filter area（㎡）	120	144	168	192	216	240
Filtered wind speed（m/min）	1.0～2.0
Resistance（Pa）	1000～1700Pa
Cleaning method	Automatic pulse cleaning
Clear ash air source（MPa）	0.5～0.7

After-sales service

The company has a professional technical team, perfect sales network and customer information database, in good faith for customers to do engineering consulting design, equipment production, installation and debugging, technical training and other related pre-sale, sale and after-sales service, to ensure customer satisfaction.

Service concept

Urgent customer's urgent Think what customers think. Satisfy customer needs

Service target

Very service; Everyone is satisfied

After-sales service process

Performance pledge
Open 24 hours service phone 400-007-7516, at any time to accept user consultation. After-sales service hotline: 18874850576. After receiving customer call, make plan to reply customer within 2 hours. Send experts to the customer's site within 24 hours.
