Your present location：

Product center

Filter cylinder purification series

Mobile welding smoke filter cartridge purifier

200+People like

Structure and function introduction：

JTY series mobile welding smoke filter purifier is light, flexible, with inspiratory arm, box structure, equipped with 2 universal casters, 2 directional casters, with 1 or 2 inspiratory arms, specially designed for the collection and purification of floating dust at non-fixed stations in the welding process, cost-effective. Equipped with brand motor, high efficiency PTFE coated polyester fiber filter cylinder, to ensure the high level of filtration accuracy and efficiency.

Customer service hotline：

400-007-7516

Immediate consultation

Commodity details

Technical parameter

After-sales service

Mobile welding smoke filter cylinder purifier

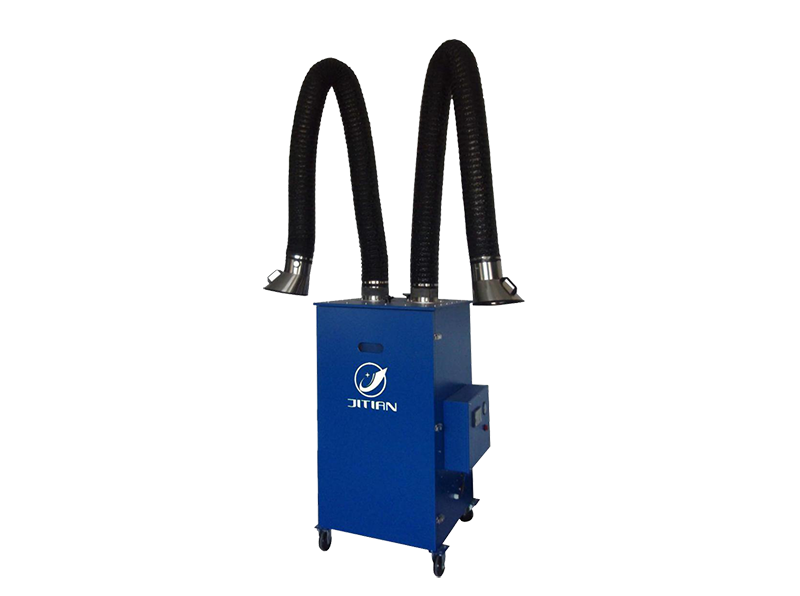

Double suction arm

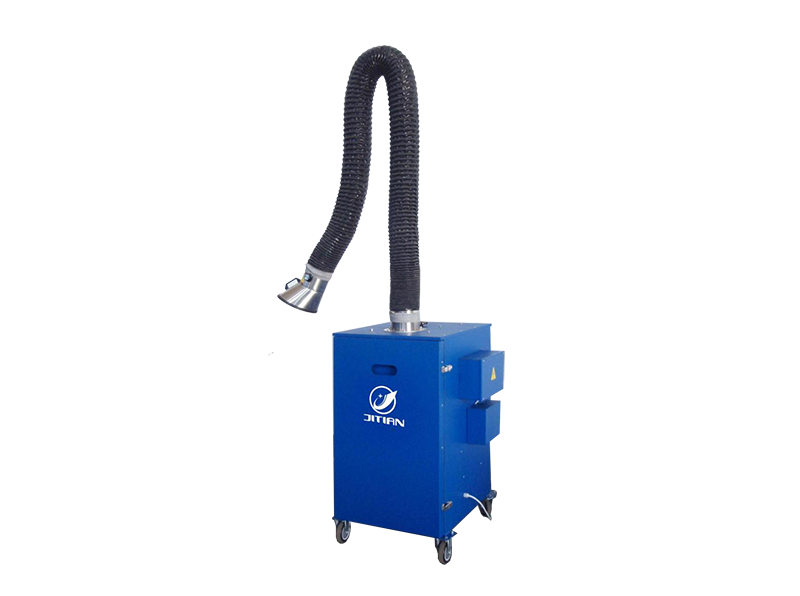

Single suction arm

product details

◆Brand motor, strong power

Power system equipped with 380V voltage brand asynchronous motor, high strength customized centrifugal impeller, fan negative pressure and flow perfect combination, equipment stable operation, low failure rate, low noise, can be 24 hours of continuous work.

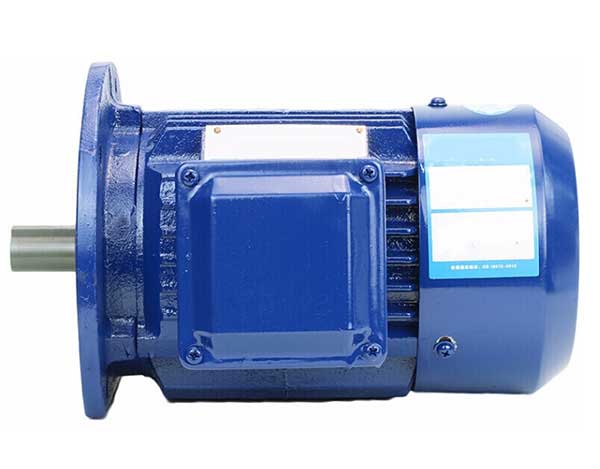

Brand motor

◆ High efficiency PTFE polyester coated filter cartridge

Filter system selection of high efficiency PTFE polyester coated filter cylinder, the selection of imported polyester fiber substrate, standard configuration polyester coated waterproof material, the equivalent diameter in 0.3μ The filtration accuracy of dust above m is more than 99.9%.

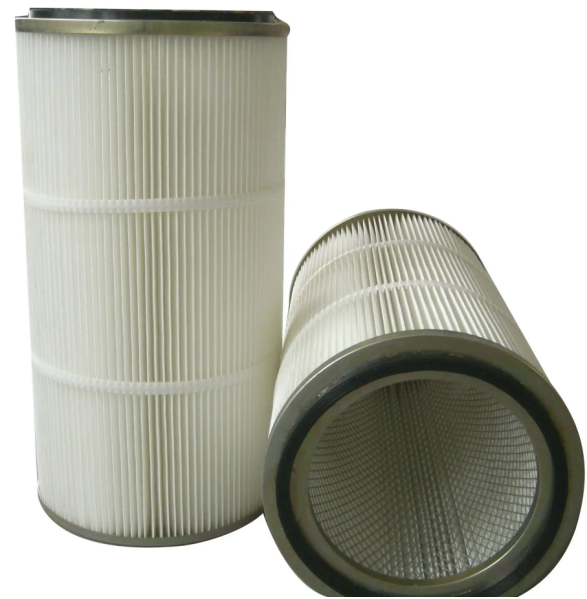

Cartridge filter

◆ Intelligent automatic pulse cleaning, high efficiency and no pollution

The intelligent automatic pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, and the electromagnetic valve nozzle is aligned with the filter cylinder filter outlet; The solenoid valve control line is connected with the PLC controller, the action of the solenoid valve is intelligent controlled by the PLC controller, when the controller gives the action command, the pulse solenoid valve begins to act, each spray cleaning in 0.1 ~ 0.3S or so to complete, at this moment the high-pressure air from the filter cylinder exhaust port into the filter cylinder at high speed, causing a shock vibration, The dust attached to the outer surface of the filter cylinder is shaken off in the dust collection bucket. The cleaning frequency can be set intelligently by PLC controller.

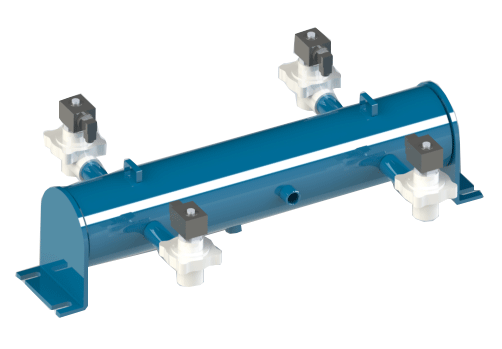

Compressed air bag, solenoid valve

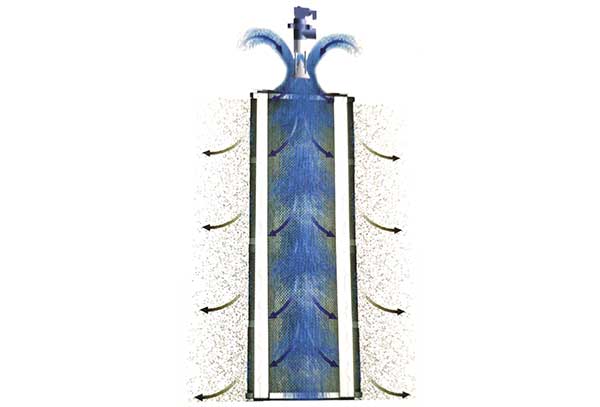

Dust removal schematic diagram

◆ Electronic control system, quality assurance

Electronic control system, the main electronic components using brand products. Motor adopts electric box control, built-in power switch, thermal overload protection, lack of phase, reverse equal phase sequence protection, control panel simple and generous, adjustable Angle, can easily achieve remote control, linkage control and other functions according to needs.

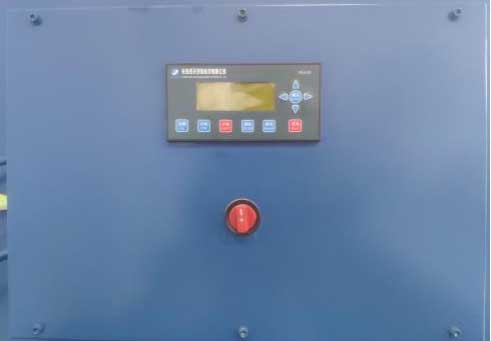

Control box

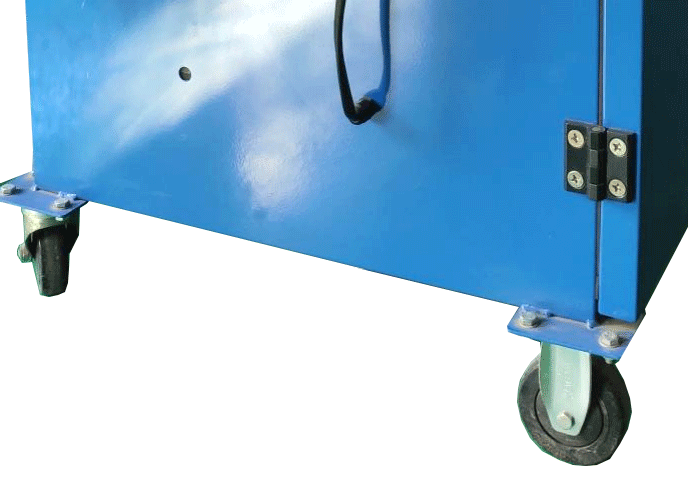

◆ Universal caster, easy to move

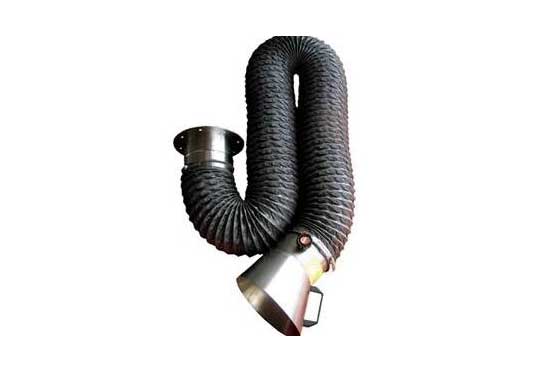

◆ Rotate suction arm, adjust flexibly

The standard length of the suction arm is 2 or 3 meters. Suction pipe standard caliber: 150mm, 160mm, can be customized 100mm, 175mm, 200mm. Light and convenient, flexible rotation. All-round, multi-angle accurate positioning, free hover for work, convenient disassembly and cleaning. Wall tube selection of special hose, corrosion resistance, smooth wall, high wind speed, long service life. The suction port is equipped with air volume regulating valve, which can adjust the air volume freely according to the actual demand.

Product parameter

Equipment model	JTYS-I	JTYZ-I	JTYZ-II
Treated air volume（m³/h）	1500～1700		2000～2400
Motor power（KW）	1.1		2.2
Supply voltage（V/Hz）	380V/50Hz（220V optional）		380V/50Hz
Cleaning method	Manual cleaning	Automatic pulse cleaning
Noise（db）	≤75±5
Overall dimension（mm）LWH	7507251150		8258001350
Cartridge Quantity (only)	1		2
Suction arm	Φ160，L=3m，1 root		Φ160，L=3m，2 root
Weight（kg）	150		200

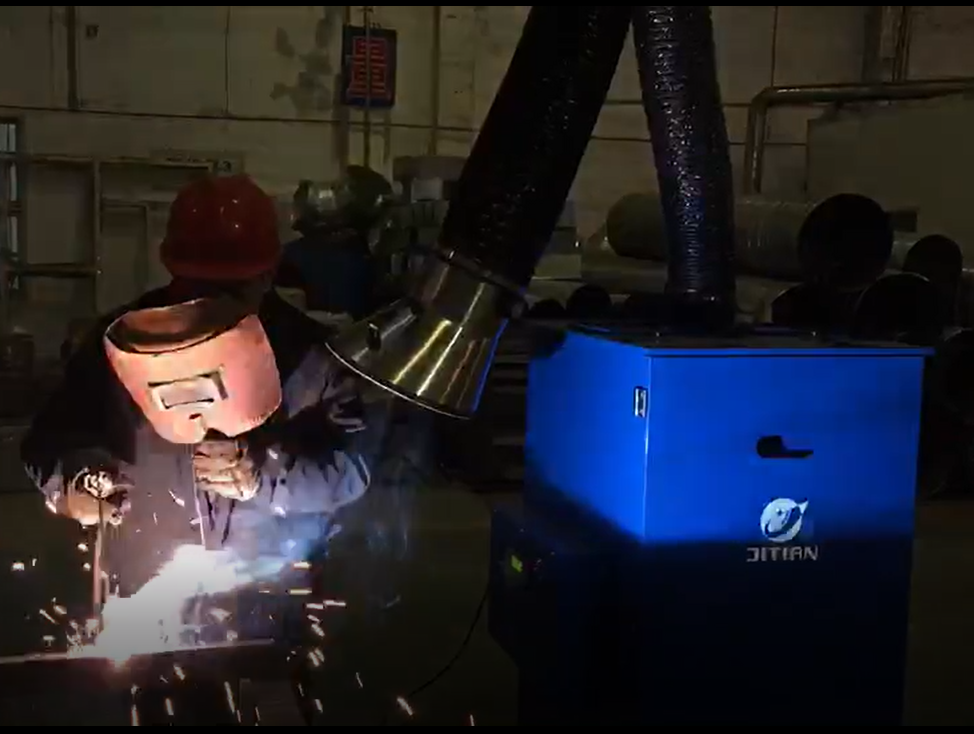

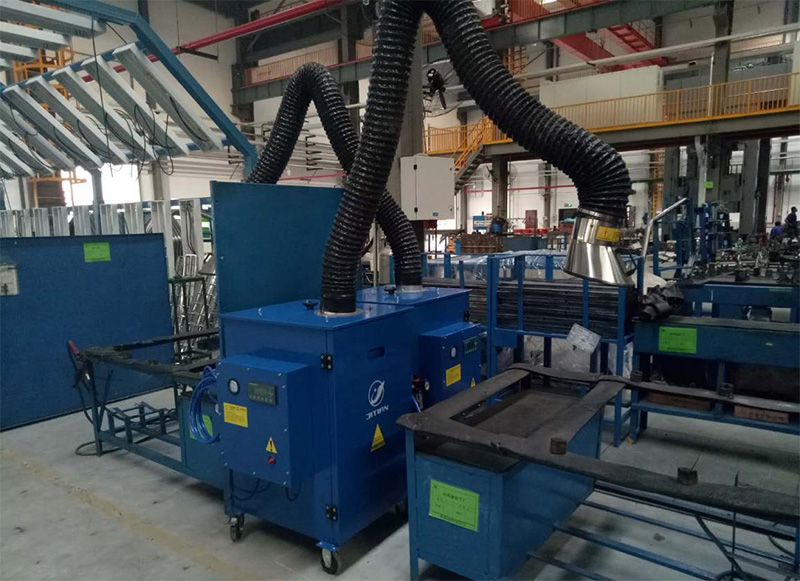

Engineering case

Equipment model	JTYS-I	JTYZ-I	JTYZ-II
Treated air volume（m³/h）	1500～1700		2000～2400
Motor power（KW）	1.1		2.2
Supply voltage（V/Hz）	380V/50Hz（220V optional）		380V/50Hz
Cleaning method	Manual cleaning	Automatic pulse cleaning
Noise（db）	≤75±5
Overall dimension（mm）LWH	7507251150		8258001350
Cartridge Quantity (only)	1		2
Suction arm	Φ160，L=3m，1 root		Φ160，L=3m，2 root
weight（kg）	150		200

After-sales service

The company has a professional technical team, perfect sales network and customer information database, in good faith for customers to do engineering consulting design, equipment production, installation and debugging, technical training and other related pre-sale, sale and after-sales service, to ensure customer satisfaction.

Service concept

Urgent customer's urgent Think what customers think. Satisfy customer needs

Service target

Very service; Everyone is satisfied

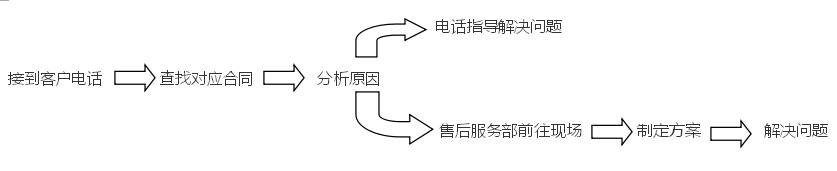

After-sales service process

Performance pledge
Open 24 hours service phone 400-007-7516, at any time to accept user consultation. After-sales service hotline: 18874850576. After receiving customer call, make plan to reply customer within 2 hours. Send experts to the customer's site within 24 hours.
