Green series high efficiency filter cartridge purifier

200+People like

Structure and function introduction：

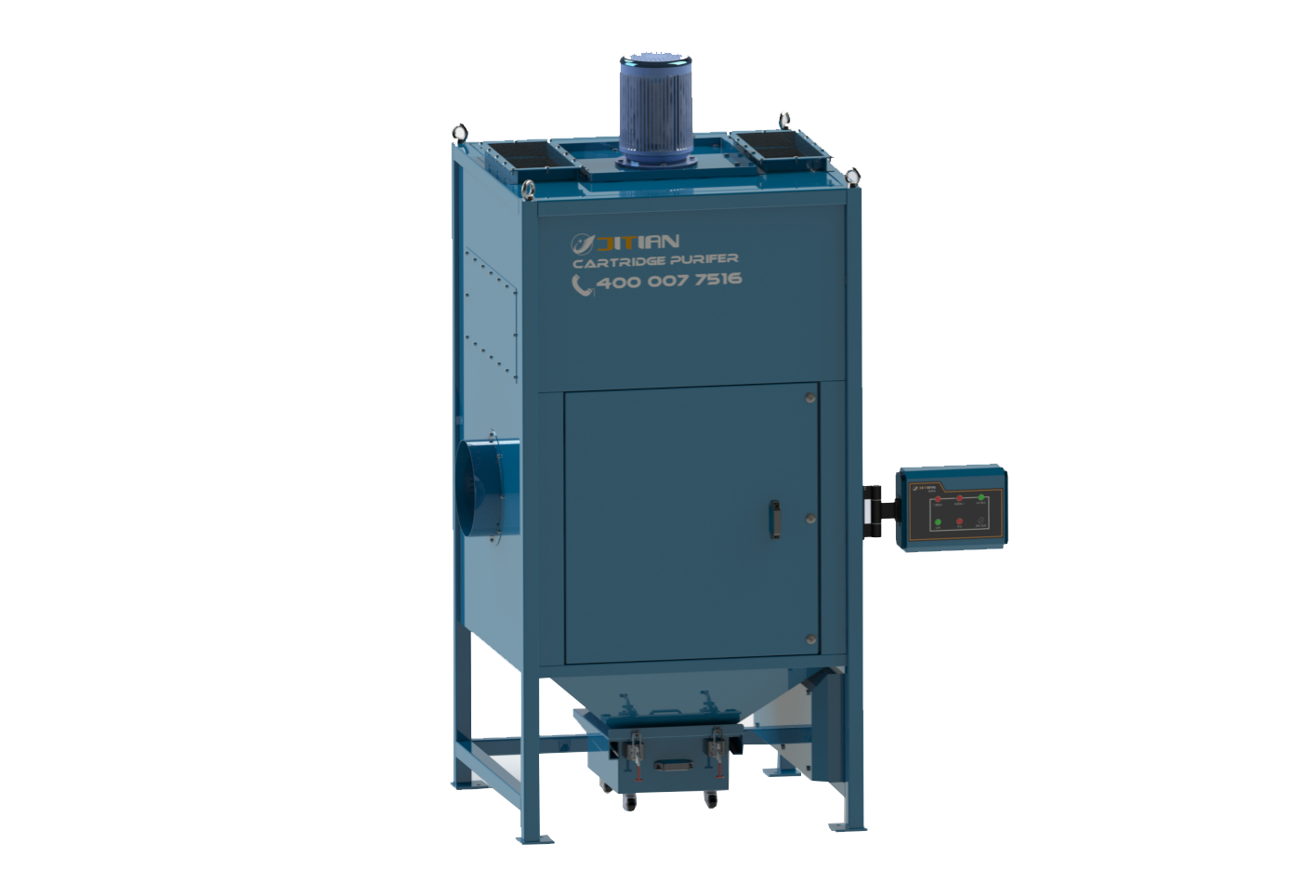

Green series integrated filter cylinder purifier is a new generation of green and efficient dust collector developed by Jitian Company according to different market needs. This equipment adopts fan integrated design, sheet metal parts welded together, surface treatment using electrostatic powder coating, filter cylinder installed vertically, the overall appearance is simple and beautiful, small footprint, low system resistance, low energy consumption. This series of equipment can effectively deal with cutting, welding, grinding, crushing and other common processing and production process of harmful dust and dust. To provide you with a safer, cleaner working environment.

Customer service hotline：

400-007-7516

Immediate consultation

Commodity details

Technical parameter

After-sales service

Green series high efficiency filter cylinder purifier

product details

◆ Brand motor, strong power

Power system equipped with three-phase 380V voltage brand asynchronous motor, high strength customized centrifugal impeller, fan negative pressure and flow perfect combination, equipment stable operation, low failure rate, low noise, 24 hours of continuous work.

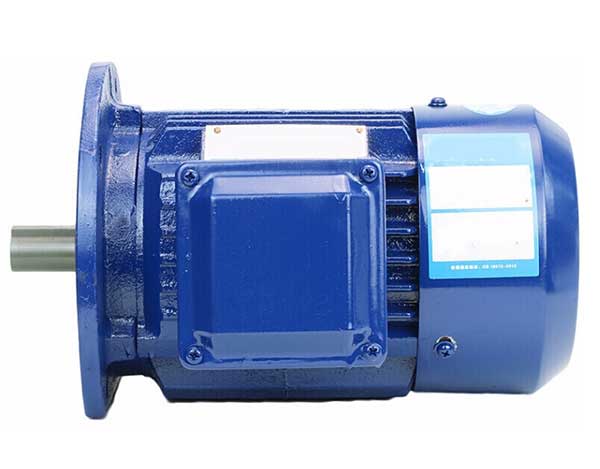

Brand motor

◆ High efficiency PTFE polyester coated filter cartridge

Filter system selection of high efficiency PTFE polyester coated filter cylinder filter, the selection of imported polyester fiber substrate, standard configuration polyester coated waterproof material, the equivalent diameter in 0.3μ The filtration accuracy of dust above m is more than 99%.

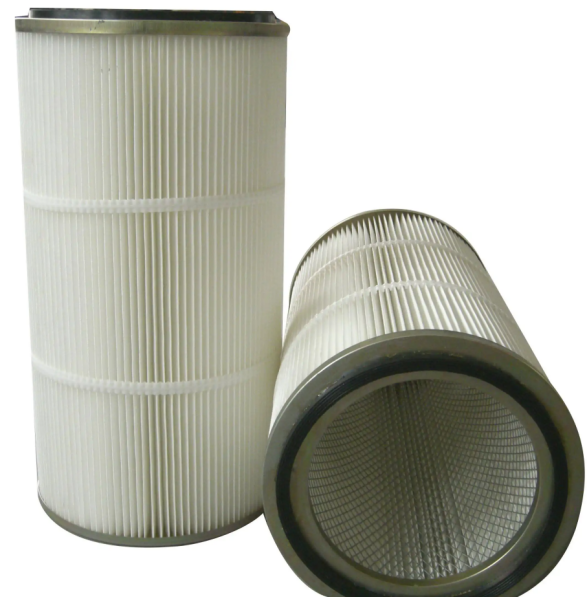

Cartridge filter

◆ Intelligent automatic pulse cleaning, high efficiency and no pollution

The intelligent automatic pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, and the electromagnetic valve nozzle is aligned with the filter cylinder filter outlet; The solenoid valve control line is connected with the PLC controller, the action of the solenoid valve is intelligent controlled by the PLC controller, when the controller gives the action command, the pulse solenoid valve begins to act, each spray cleaning in 0.1 ~ 0.3S or so to complete, at this moment the high-pressure air from the filter cylinder exhaust port into the filter cylinder at high speed, causing a shock vibration, The dust attached to the outer surface of the filter cylinder is shaken off in the dust collection bucket. The cleaning frequency can be set intelligently by PLC controller.

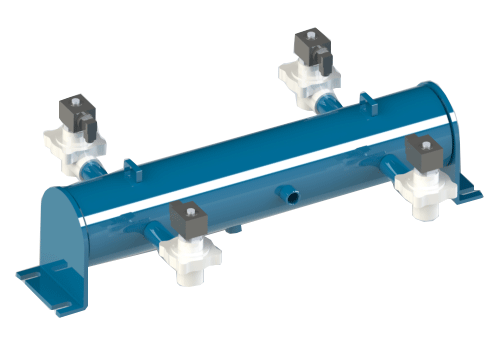

Compressed air bag, solenoid valve

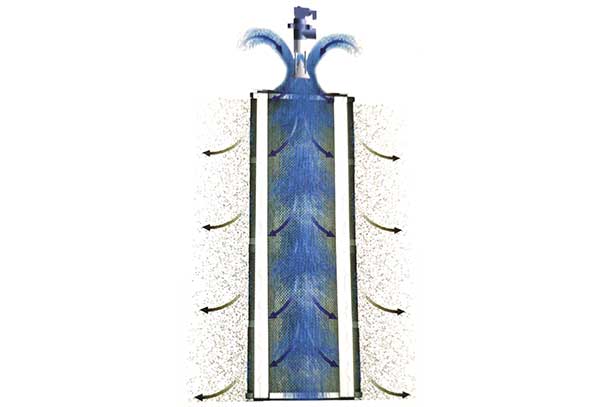

Dust removal schematic diagram

◆ Electronic control system, quality assurance

Electronic control system, the main electronic components using brand products. Motor adopts electric box control, built-in power switch, thermal overload protection, lack of phase, reverse equal phase sequence protection, control panel simple and generous, adjustable Angle, can easily achieve remote control, linkage control and other functions according to needs.

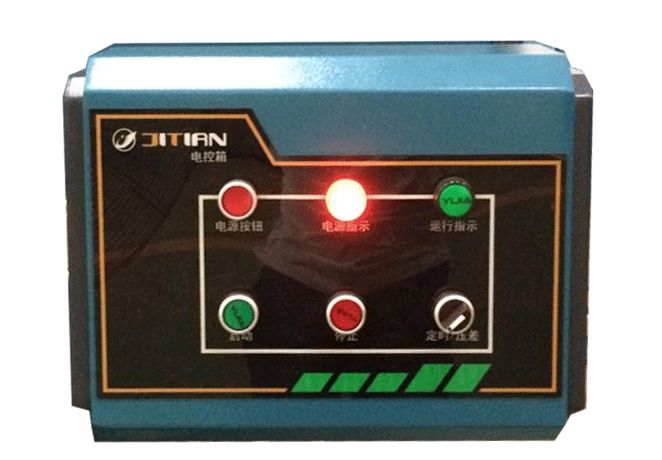

Electric control box

◆ Easy cleaning

Universal caster, fast pressing handle, dust cleaning is convenient and quick.

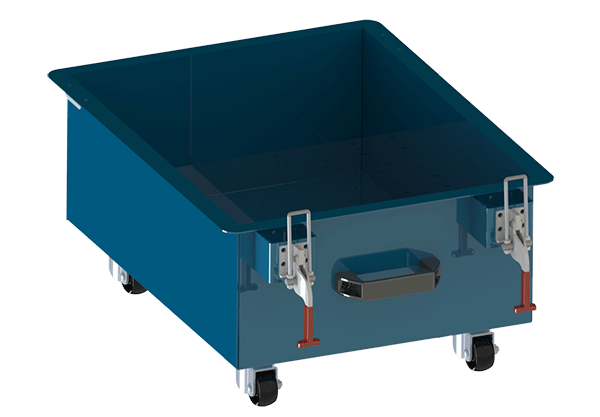

Ash bucket

Product parameter

Equipment model	JTLJ-4DL	JTLJ-6DL	JTLJ-8DL	JTLJ-12DL	JTLJ-16DL
Treated air volume（m³/h）	4000	6000	9000	12000	16000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	120010802770	120014002770	120018002880	211214002880	211218002980

Equipment model	JTLJ-4DL	JTLJ-6DL	JTLJ-8DL	JTLJ-12DL	JTLJ-16DL
Treated air volume（m³/h）	4000	6000	9000	12000	16000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	120010802770	120014002770	120018002880	211214002880	211218002980
