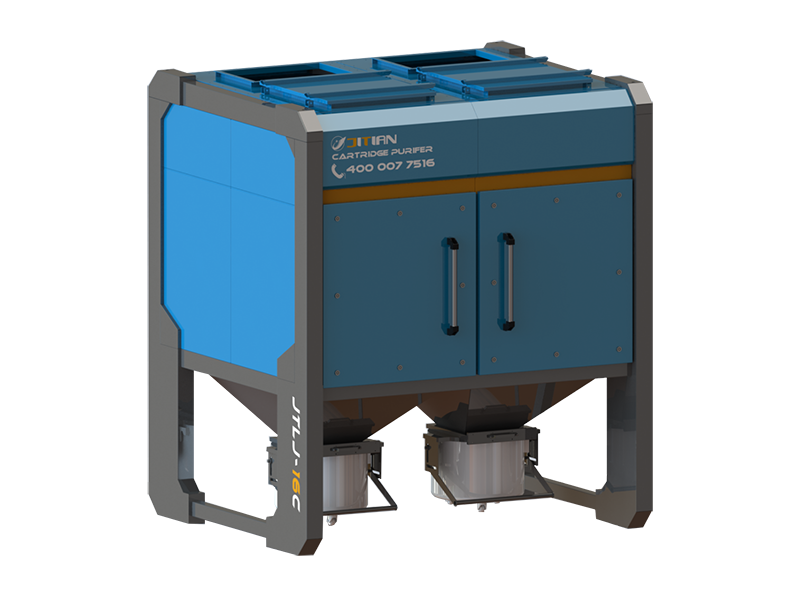

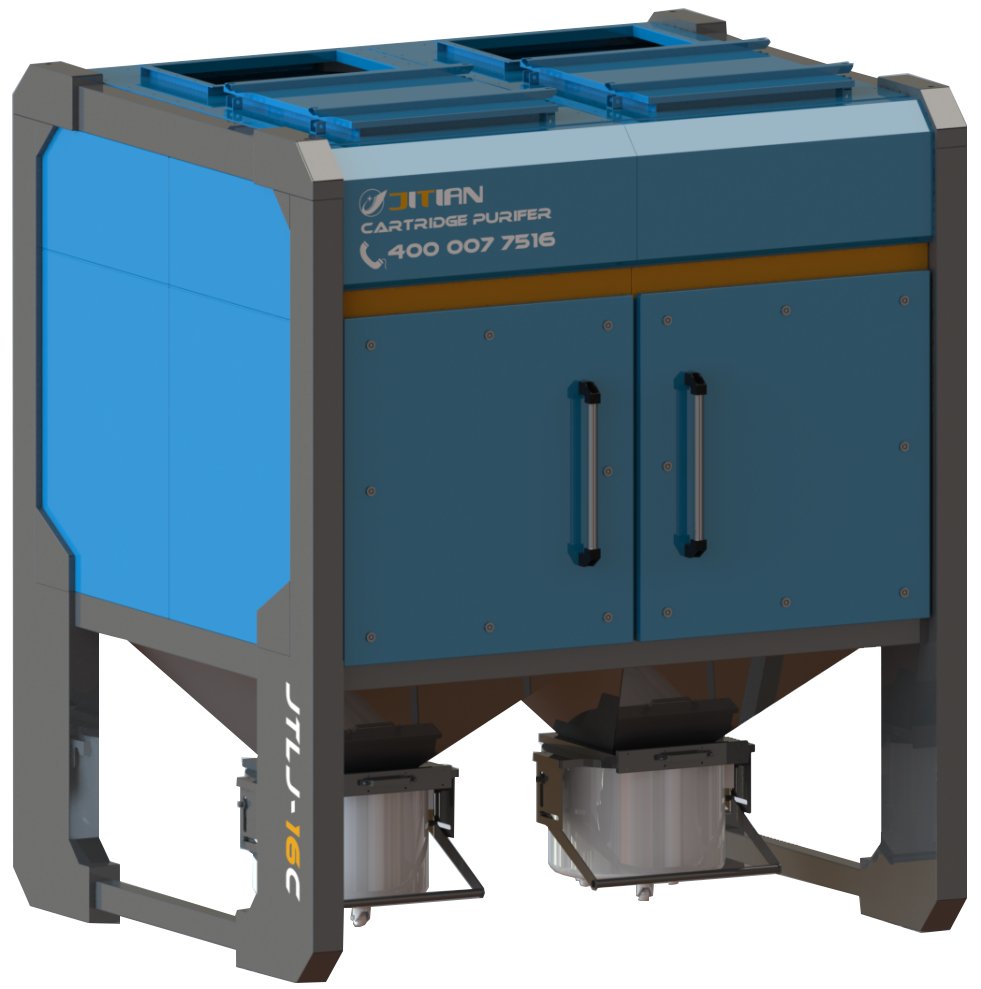

Split type high efficiency filter cartridge purifier

JTLJ split type high efficiency filter cylinder purifier is dust removal equipment for fan, motor, electric control system and filter unit. Filter unit equipped with high efficiency polyester coated filter cylinder, high filtration efficiency and filtration accuracy; The sheet metal parts are made of high quality cold rolled sheet, and the surface is sprayed with plastic. The filter cylinder is installed vertically and adopts the fast pressing device, which is quick and convenient to disassemble and assemble. Stainless steel ash bucket equipped with fast pressing device, ash unloading easy and fast. Single equipment has large air volume, modular design, high standardization, short production cycle, convenient for different number of modules to meet the needs of greater air volume, this series of products is suitable for large air volume smoke or dust control places.

product details

◆ High efficiency PTFE polyester coated filter cartridge

Filter system selection of high efficiency PTFE polyester coated filter cylinder, the selection of imported polyester fiber substrate, standard configuration polyester coated waterproof material, the equivalent diameter in 0.3μ The filtration accuracy of dust above m is more than 99.9%.

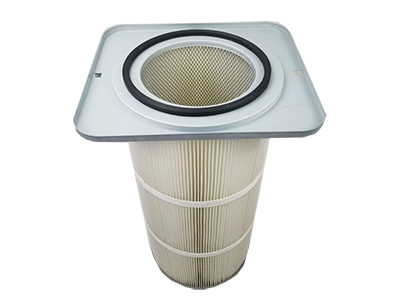

Cartridge filter

◆ Intelligent automatic pulse cleaning, high efficiency and no pollution

The intelligent automatic pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, and the electromagnetic valve nozzle is aligned with the filter cylinder filter outlet;Solenoid valve control line is connected to a PLC controller, electromagnetic valve action performed by PLC controller of intelligent control, when the controller action instruction given pulse electromagnetic valve began to action, each spray dust at around 0.1 ~ 0.3 S, at the moment jet of high pressure air by high-speed into the cartridge, cartridge vent cause a shock vibration, The dust attached to the outer surface of the filter cylinder is shaken off in the dust collection bucket. The cleaning frequency can be set intelligently by PLC controller.

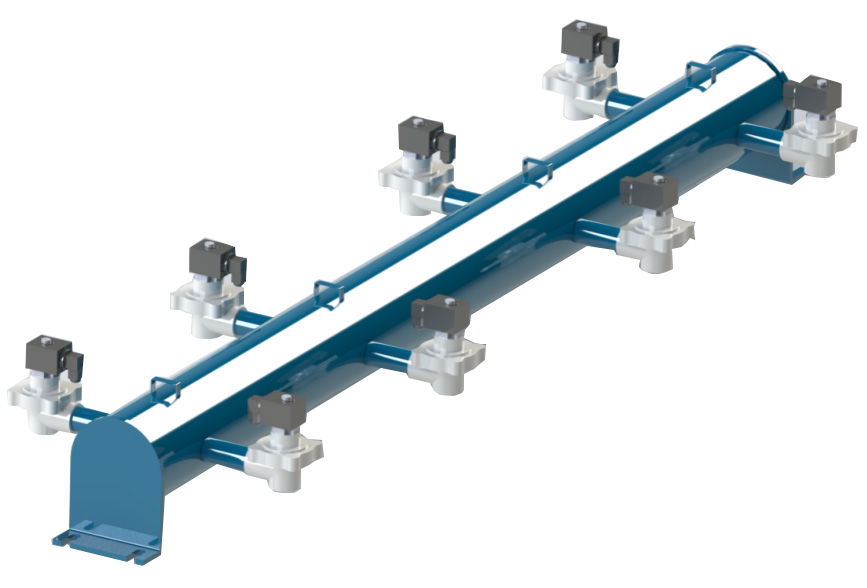

Compressed air bag, solenoid valve

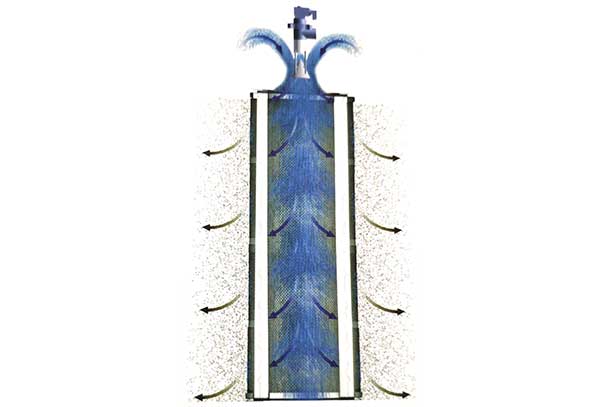

Dust removal schematic diagram

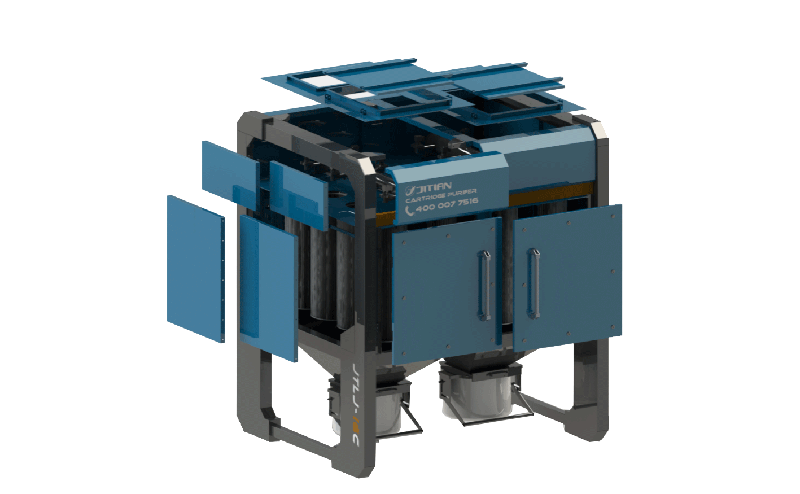

◆ Split structure, modular design

JTLJ split type high efficiency filter cylinder purifier is dust removal equipment for fan, motor, electric control system and filter unit. Filter unit equipped with high efficiency polyester coated filter cylinder, high filtration efficiency and filtration accuracy; The sheet metal parts are made of high quality cold rolled sheet, and the surface is sprayed with plastic. The filter cylinder is installed vertically and adopts the fast pressing device, which is quick and convenient to disassemble and assemble. Stainless steel ash bucket equipped with fast pressing device, ash unloading easy and fast. Single equipment has large air volume, modular design, high standardization, short production cycle, convenient for different number of modules to meet the needs of greater air volume, this series of products is suitable for large air volume smoke or dust control places.

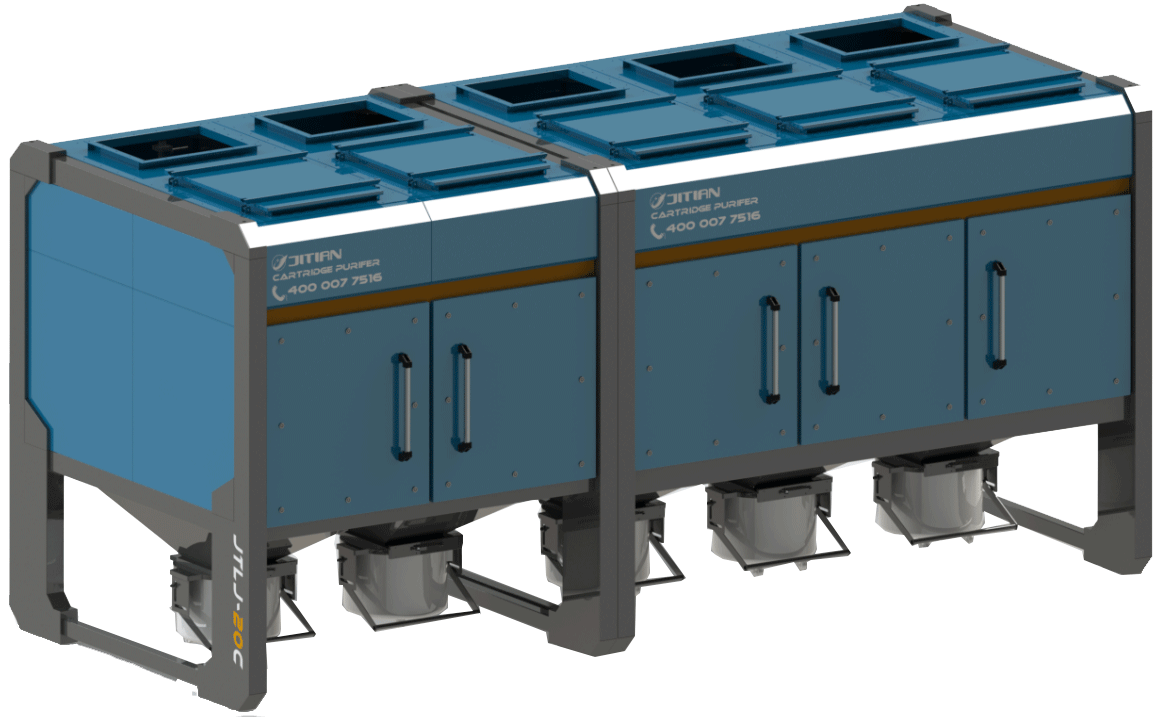

Modular splicing meets the demand of greater air volume

Modular design and production of sheet metal parts; Surface spray plastic, beautiful, durable

◆ Filter cylinder vertical installation, installation, cleaning fast

The filter cylinder is installed vertically, so the cleaning effect is better. The press of the filter cylinder adopts the fast pressing mechanism, the installation and replacement of the filter cylinder does not need to enter the equipment inside, and the replacement is fast, labor-saving, easy and convenient maintenance.

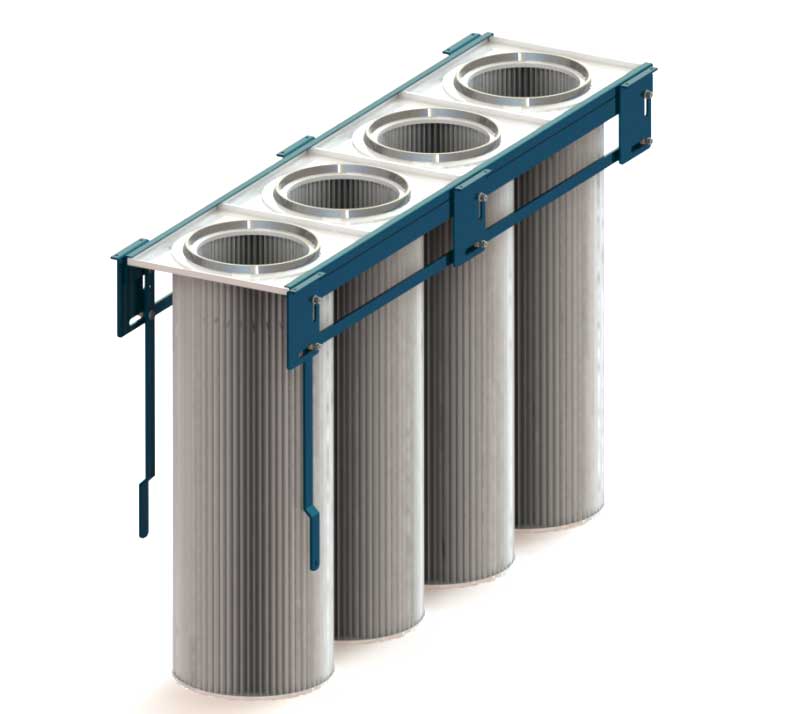

Cartridge pressing device

◆Large volume ash storage bucket, equipped with universal wheel at the bottom, easy to transfer

The ash storage bucket is made of round stainless steel drum, the bottom plate is equipped with universal foot pulley, the single storage amount of ash, ash bucket movement is easy and labor saving. Ash bucket lifting and pressing using special pressing mechanism, loading and unloading fast, labor saving.

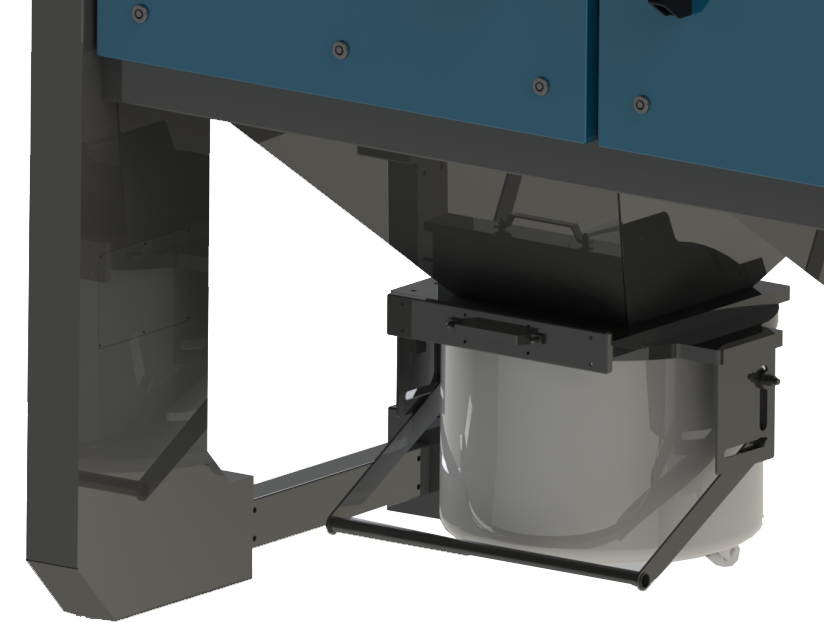

Ash bucket handling mechanism

Product parameter

Equipment model	JTLJ-B12FG/ JTLJ-B18FD	JTLJ-B16FG/ JTLJ-B24FD	JTLJ-B20FG/ JTLJ-B30FD	JTLJ-B24FG/ JTLJ-B36FD	JTLJ-B30FG/ JTLJ-B45FD
Treated air volume（m³/h）	12000/18000	16000/24000	20000/30000	24000/36000	30000/45000
Cartridge Quantity (only)	12	16	20	24	30
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	211214122470	211218002470	211221502470	317018002470	317021502470

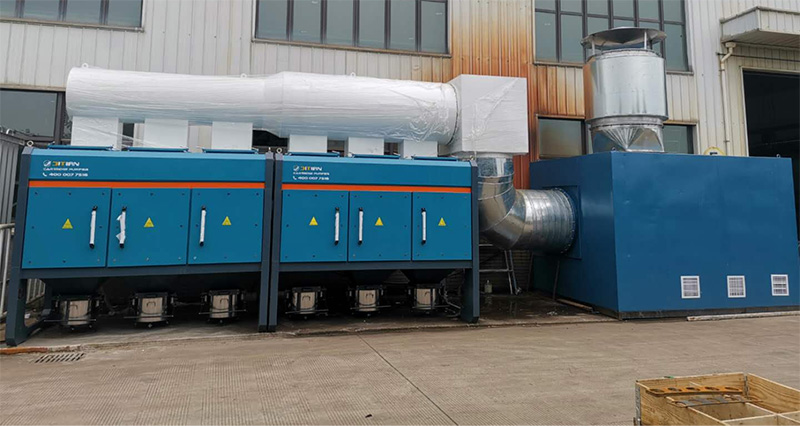

Engineering case
