Structure and function introduction：

JT series corrosion resistant dust collector is a new generation of special high efficiency dust collector developed by Jitian Company according to the special needs of the market. This equipment adopts fan integrated design, sheet metal parts adopt corrosion resistant plate integral welding forming, surface polishing and grinding treatment, corrosion resistant filter cylinder adopts vertical installation, equipment configuration brand anticorrosive fan. The overall appearance of the equipment is simple and beautiful, occupies a small area, the system resistance is small, and the operation energy consumption is low. This series of equipment is mainly used for purifying corrosive dust and soot.

Customer service hotline：

400-007-7516

Immediate consultation

Commodity details

Technical parameter

After-sales service

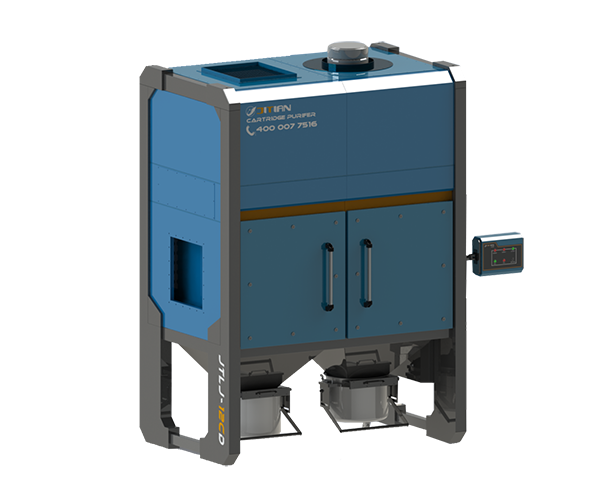

Corrosion resistant dust collector

product details

◆ Made of corrosion-resistant board and durable

The whole equipment with 2 ~ 4mm corrosion resistant plate bending overall welding molding, surface polishing polishing treatment, corrosion resistance ability is strong, the equipment durable.

◆ Corrosion - resistant fan, long - term operation is guaranteed

The power system is equipped with high-strength customized centrifugal anti-corrosion fan, which perfectly combines the negative pressure and flow rate of the fan. The equipment runs stably, has low failure rate, low noise, and can work continuously for 24 hours.

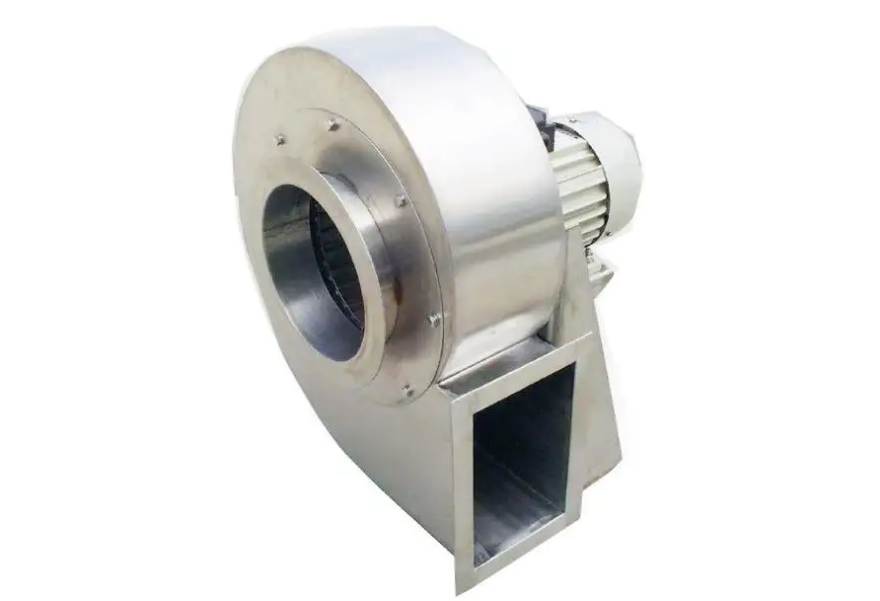

Corrosion resistant fan

◆High efficiency PTFE polyester coated filter cartridge

Filter system selection of high efficiency PTFE polyester coated filter cylinder filter, the selection of imported polyester fiber substrate, standard configuration polyester coated waterproof material, the equivalent diameter in 0.3μ The filtration accuracy of dust above m micron is more than 99%.

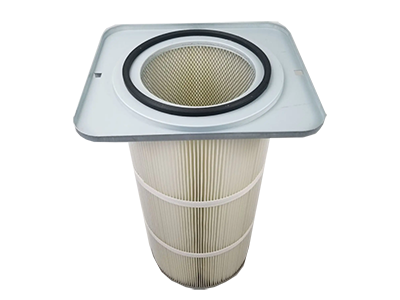

Cartridge filter

◆ Intelligent automatic pulse cleaning, high efficiency and no pollution

The intelligent automatic pulse cleaning system is composed of PLC controller, electromagnetic pulse valve, compressed air bag and other components. The compressed air inlet of the pulse valve is connected with the air bag, and the electromagnetic valve nozzle is aligned with the filter cylinder filter outlet; The solenoid valve control line is connected with the PLC controller, the action of the solenoid valve is intelligent controlled by the PLC controller, when the controller gives the action command, the pulse solenoid valve begins to act, each spray cleaning in 0.1 ~ 0.3S or so to complete, at this moment the high-pressure air from the filter cylinder exhaust port into the filter cylinder at high speed, causing a shock vibration, The dust attached to the outer surface of the filter cylinder is shaken off in the dust collection bucket. The cleaning frequency can be set intelligently by PLC controller.

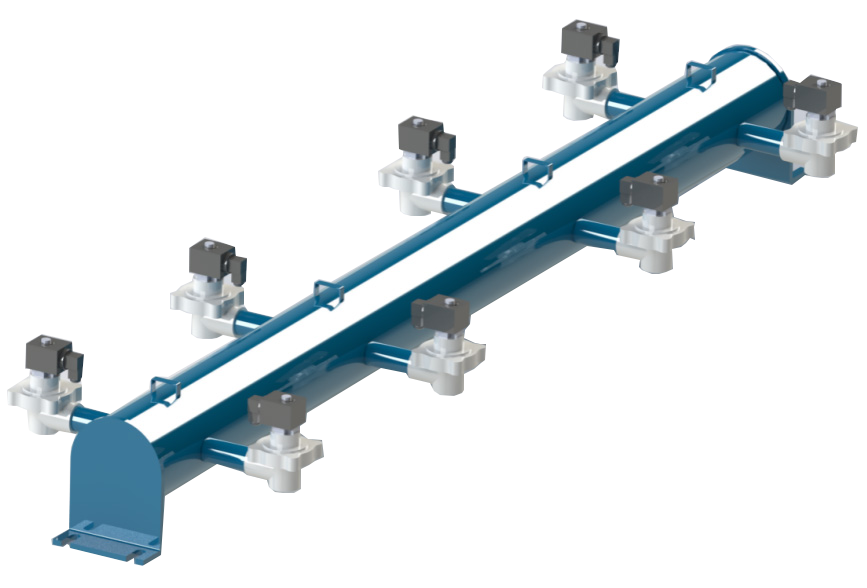

Compressed air bag, solenoid valve

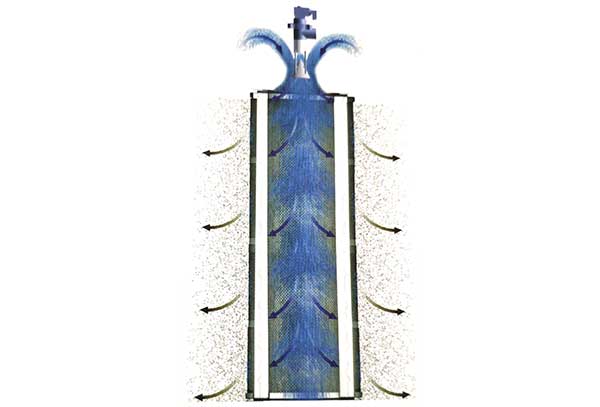

Dust removal schematic diagram

◆ Electronic control system, quality assurance

Electronic control system, the main electronic components using brand products. Motor adopts electric box control, built-in power switch, thermal overload protection, lack of phase, reverse equal phase sequence protection, control panel simple and generous, adjustable Angle, can easily achieve remote control, linkage control and other functions according to needs.

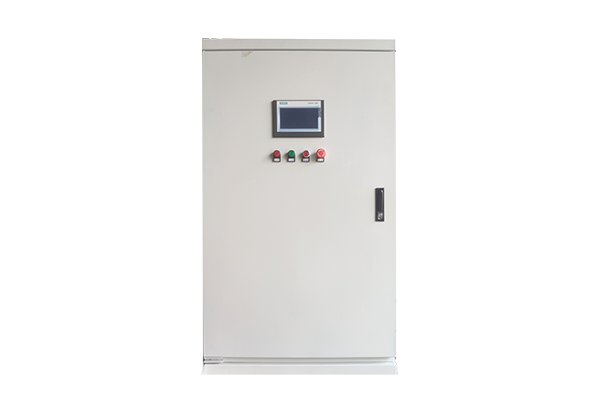

Electric control cabinet

◆ Filter cylinder vertical installation, installation, cleaning fast

The filter cylinder is installed vertically, so the cleaning effect is better. The press of the filter cylinder adopts the fast pressing mechanism, the installation and replacement of the filter cylinder does not need to enter the equipment inside, and the replacement is fast, labor-saving, easy and convenient maintenance.

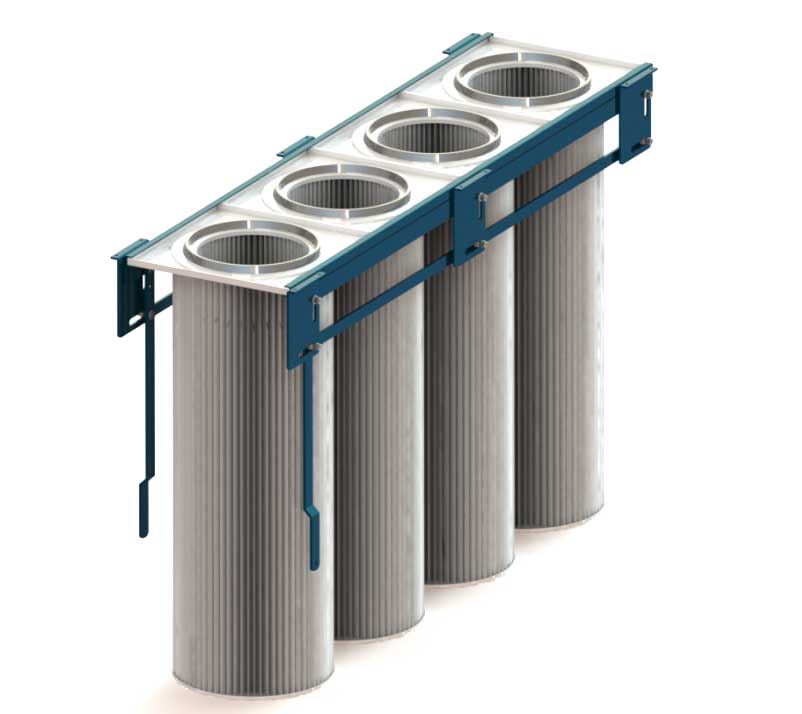

Filter cylinder fast pressing device

◆ Large volume ash storage bucket, equipped with universal wheel at the bottom, easy to transfer

The ash storage bucket is made of round stainless steel drum, the bottom plate is equipped with universal foot pulley, the single storage amount of ash, ash bucket movement is easy and labor saving. Ash bucket lifting and pressing using special pressing mechanism, loading and unloading fast, labor saving.

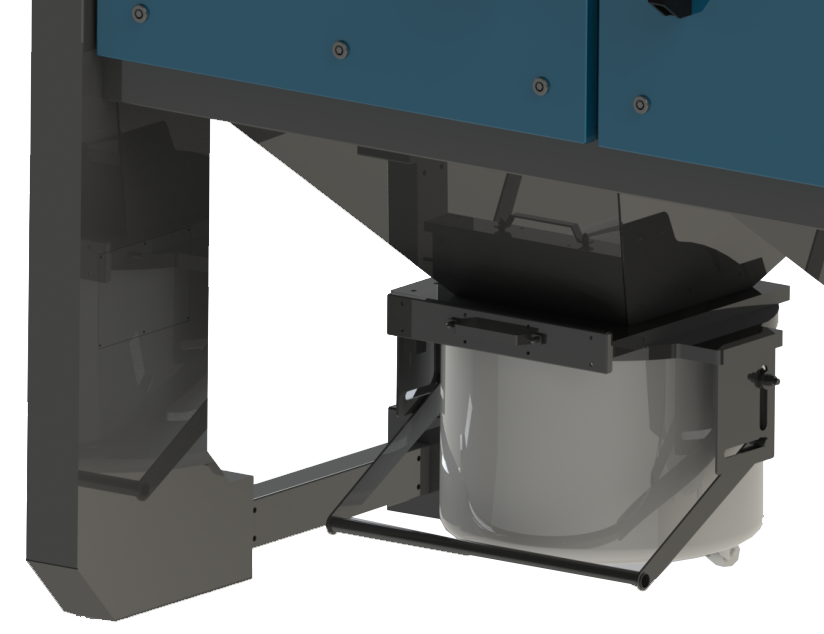

Ash storage drum

Product parameter

Equipment model	JTLJ-B4DG（NF）/ JTLJ-B7DD（NF）	JTLJ-B6DG（NF）/ JTLJ-B9DD（NF）	JTLJ-B9DG（NF）/ JTLJ-B12DD（NF）	JTLJ-B12DG（NF）/ JTLJ-B18DD（NF）	JTLJ-B16DG（NF）/ JTLJ-B24DD（NF）
Treated air volume（m³/h）	4000/7000	6000/9000	9000/12000	12000/18000	16000/24000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	116010502960	116014122960	116018003030	211214123100	211218003160

Equipment model	JTLJ-B4DG（NF）/ JTLJ-B7DD（NF）	JTLJ-B6DG（NF）/ JTLJ-B9DD（NF）	JTLJ-B9DG（NF）/ JTLJ-B12DD（NF）	JTLJ-B12DG（NF）/ JTLJ-B18DD（NF）	JTLJ-B16DG（NF）/ JTLJ-B24DD（NF）
Treated air volume（m³/h）	4000/7000	6000/9000	9000/12000	12000/18000	16000/24000
Cartridge Quantity (only)	4	6	8	12	16
Supply voltage（V/Hz）	380V/50Hz
Cleaning method	Automatic pulse cleaning
Noise（db）	≤80±5
Overall dimension（mm）LWH	116010502960	116014122960	116018003030	211214123100	211218003160
